SL-PRB01-x500

SL-PRB01-x500, is a wide-band passive oscilloscope probe, specifically made to accurately analyze Power Supply output waveforms.

Ideal to analyze Voltage Regulator output ripple, transient response, noise and noise.

Designed and widely employed by specialists in power management IC design.

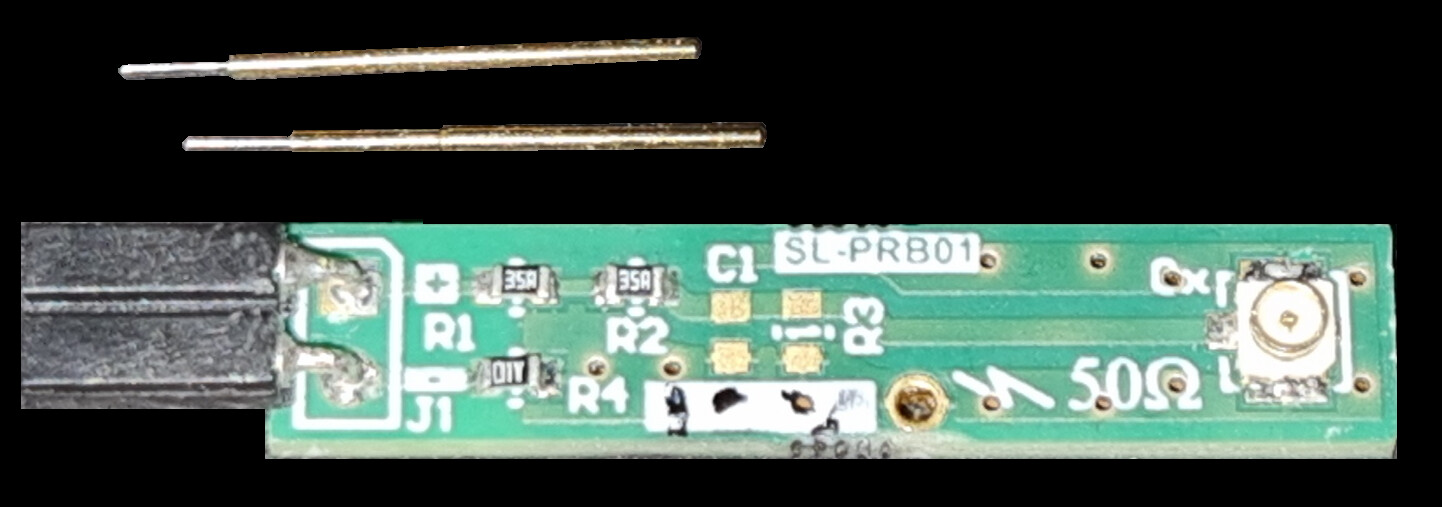

SPRB01-x500 is assembled with accurate 453 ohm resistor which provides an accurate 10:1 attenuation factor with a 50 ohm oscilloscope input.

We advise you to order the collection of 500Ohm, 1k and 2k

Use scope calibration setup to tune attenuation factor.

Applications: Ideal for Power supply very large bandwidth power supply ripple and noise measurements

shipped with

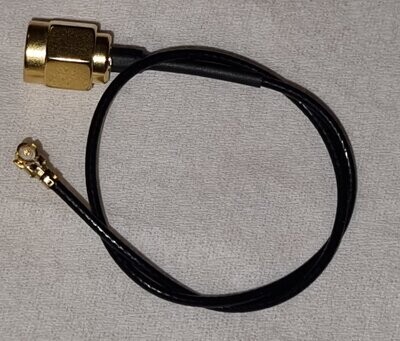

• 1 unit, SLREF 26928 : 20cm UFL to SMA 50 ohm cable
• 2 units, pogo test pin (spring mount pins)
• 1 double face silicon patch (2mm thick)
