SLT3-ACC-X150-01

SLT3-ACC-X150-01

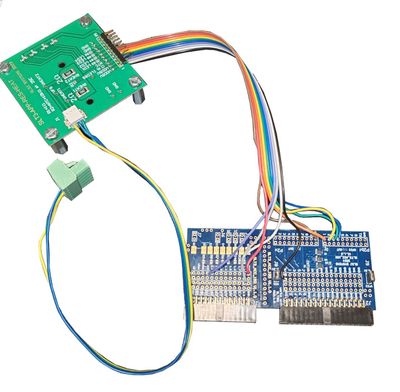

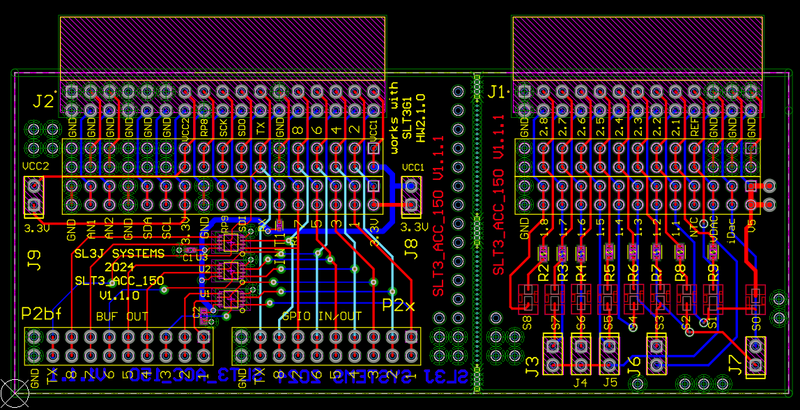

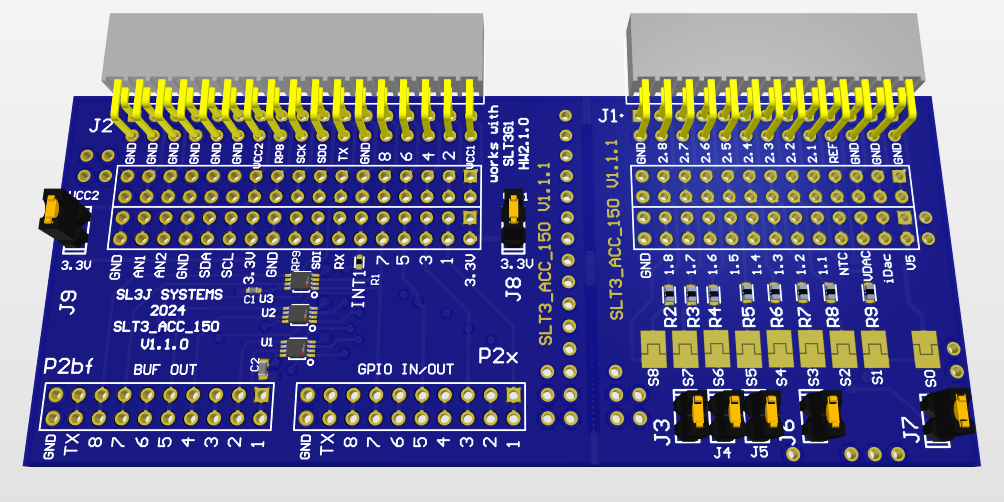

A test interface allowing to export the wire connections from the side connectors J1 and J2.

This interface contains

• 8 digital output buffers connected to usrIO[1:8] bus
• 1Ω acurate current sens resistors connected to AN1..8 differential channels
• Various strap/jumpers to connect usrVccd to Vdd3V3
• dual raw header connections ready to use with directly soldered wires or with extra sodered header to customize you HW connections with SLT3G1

Board dimensions : 4.1in x 1.7in x 0.062in

The product just came out of production and will be available within 2 weeks.

You order now is considered as a pre-order and will face 2 weeks additional delays.
